型号
|
代码
|
|
说明
|
|||||||||
|
SWP-T204
|
|
|
|
|
|
|
|
|
|
|
|

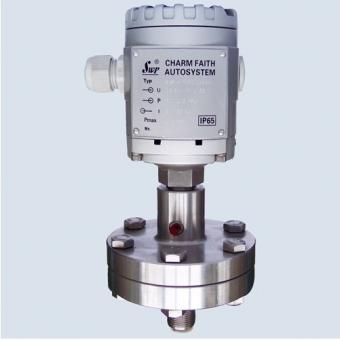

多功能隔膜压力变送器
|
|
SWP-T214
|
|
|
|
|
|
|
|
|
|
|
|
多功能隔膜压力变送器（温度隔离型）
|
|
SWP-T224
|
|
|
|
|
|
|
|
|
|
|
|
多功能隔膜压力变送器（毛细管远传型）
|
|
变送输出
|
G
|
|
|
|
|
|
|
|
|
|
|
4-20mA，线性，模拟/阻尼可调
|
|
S
|
|
|
|
|
|
|
|
|
|
|
4-20mA，智能型，HART协议通讯
|
|
|
隔离膜片材料
|
|
1
|
|
|
|
|
|
|
|
|
|
316L不锈钢
|
|
|
2
|
|
|
|
|
|
|
|
|
|
哈氏合金C
|
|
|
|
5
|
|
|
|
|
|
|
|
|
|
钽
|
|
|
|
7
|
|
|
|
|
|
|
|
|
|
带PTFE薄膜的316L不锈钢
|
|
|
|
9
|
|
|
|
|
|
|
|
|
|
特殊要求
|
|
|
过程连接材料
|
|
|
3
|
|
|
|
|
|
|
|
|
1Cr8Ni9Ti不锈钢
|
|
|
|
5
|
|
|
|
|
|
|
|
|
316L不锈钢
|
|
|
|
|
9
|
|
|
|
|
|
|
|
|
特殊要求
|
|
|
过程连接方式
|
|
|
|
A
|
|
|
|
|
|
|
|
M20×1.5阳螺纹（非焊接螺纹连接）
|
|
|
|
|
E
|
|
|
|
|
|
|
|
无法兰托架
|
|
|
|
|
|
G
|
|
|
|
|
|
|
|
G1/2A阳螺纹（非焊接螺纹连接）
|
|
|
|
|
|
Y
|
|
|
|
|
|
|
|
特殊要求
|
|
|
中介液
|
|
|
|
|
A
|
|
|
|
|
|
|
硅油
|
|
|
|
|
|
E
|
|
|
|
|
|
|
甘油
|
|
|
|
|
|
|
G
|
|
|
|
|
|
|
高温油+温度隔离器
|
|
|
|
|
|
|
N
|
|
|
|
|
|
|
高温油+毛细管
|
|
|
|
|
|
|
Y
|
|
|
|
|
|
|
特殊要求
|
|
|
外壳
|
|
|
|
|
|
A
|
|
|
|
|
|
铝外壳 无现场指示 防护等级IP65
|
|
|
|
|
|
|
B
|
|
|
|
|
|
铝外壳 带液晶现场指示 防护等级IP65
|
|
|
|
|
|
|
|
C
|
|
|
|
|
|
铝外壳 带模拟刻度0-100%显示现场指示 防护等级IP65
|
|
|
精度等级
|
|
|
|
|
|
|
1
|
|
|
|
|
0.1
|
|
|
|
|
|
|
|
2
|
|
|
|
|
0.2
|
|
|
|
|
|
|
|
|
5
|
|
|
|
|
0.5
|
|
|
|
|
|
|
|
|
9
|
|
|
|
|
特殊要求
|
|
|
测量范围
|
|
|
|
|
|
|
|
|
|
|
|
见T20标准量程表
|
|
|
|
|
|
|
|
|
Y
|
|
|
|
非标准量程
|
|
|
传感器类型
|
|
|
|
|
|
|
|
|
C
|
|
|
陶瓷电容传感器
|
|
|
|
|
|
|
|
|
|
S
|
|
|
扩散硅传感器
|
|
|
防爆类型
（普通型此栏不填） |
|
|
|
|
|
|
|
|
|
i
|
|
本安型，防爆等级Exia Ⅱ CT6
|
|
|
|
|
|
|
|
|
|
|
d
|
|
隔爆型，防爆等级Exd Ⅱ BT6
|
|
|
毛细管长度
|
|
|
|
|
|
|
|
|
|
|
m
|
只限于SWP-T224
|
