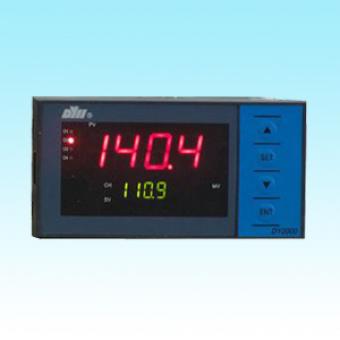

DY2000智能变送控制数字/光柱显示仪表
● DY2000智能变送控制数字/光柱显示仪表
DY21B、DY22B、DY24B、DY26B、DY27B、DY28B、DY29B、DY21GB、DY22GB
一、 主要特点：
1. 具有控制仪表的所有特点。
2. 可由面板光柱显示变送的比例值。
3. （4～20）mA或（1～5）V变送输出。
 |
 |
| 型 谱 |
说 明 |
||||||||||
| DY |
大延牌智能型仪表 |
||||||||||
|
|
2 |
SMT+开关电源(AC:85V～265V 50/60Hz) |
|||||||||
|
|
1 |
宽×高×深：(160×80×115) mm |
|||||||||
| 2 |
(80×160×115) mm |
||||||||||
| 4 |
(48×48×100) mm ＊ |
||||||||||
| 6 |
(96×48×112) mm |
||||||||||
| 7 |
(72×72×100) mm ＊ |
||||||||||
| 8 |
(48×96×112) mm |
||||||||||
| 9 |
(96×96×112) mm |
||||||||||
|
|
B |
变送控制+位式控制 |
|||||||||
| GB |
变送控制+位式控制+单光柱 ＊ |
||||||||||
|
|
0 |
报警（O2）+报警（O3）+（4～20）mA变送输出（O4） |
|||||||||
| 1 |
报警（O2）+报警（O3）+（1～5）V变送输出（O4） |
||||||||||
| 2 |
上限报警（O1）+报警（O2）+报警（O3）+（4～20）mA变送输出（O4） |
||||||||||
| 3 |
上限报警（O1）+报警（O2）+报警（O3）+（1～5）V变送输出（O4） |
||||||||||
| 4 |
通讯（O1）+报警（O2）+报警（O3）+（4～20）mA变送输出（O4） |
||||||||||
| 5 |
通讯（O1）+报警（O2）+报警（O3）+（1～5）V变送输出（O4） |
||||||||||
| 9 |
用户特殊要求的输出 |
||||||||||
| 0 |
输入信号类型由用户自由选择，出厂时设定在（4～20）mA输入 |
||||||||||
| 1 |
适配K、B、J、E、T、R、S热电偶 |
||||||||||
| 2 |
适配Pt100、Cu50热电阻 |
||||||||||
| 3 |
适配霍尔变送器mV |
||||||||||
| 4 |
适配远传压力表（30～350）Ω |
||||||||||
| 6 |
适配(4～20)mA输入，量程自由设定 |
||||||||||
| 8 |
适配(1～5)V输入，量程自由设定 |
||||||||||
| 9 |
用户特殊要求的分度号 |
||||||||||
|
|
缺省为220VAC供电 |
||||||||||
| D |
24VDC供电 |
||||||||||
|
|
|
缺省为无附加24VDC馈电电源输出 |
|||||||||
| P |
附加24VDC馈电电源输出 |
||||||||||
| |
缺省为不带串行通讯接口 |
||||||||||
| 2 |
RS232串行通讯接口 |
||||||||||
| 4 |
RS485串行通讯接口（带隔离） |
||||||||||
| M |
Modbus协议 |
||||||||||
