DY22B00，DY22B02，DY22B03，DY22B04，DY22B05，DY22B06，DY22B08，DY22B09，DY22B06P DY2000（B/BG）智能变送控制数字/光柱显示仪表商品描述：

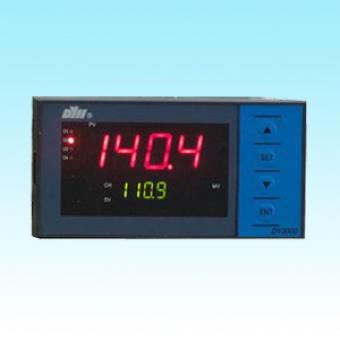

DY2000智能变送控制数字/光柱显示仪表
一、 主要特点：
1. 具有控制仪表的所有特点。
2. 可由面板光柱显示变送的比例值。
3. （4～20）mA或（1～5）V变送输出。
二、 DY2000智能变送控制数字/光柱显示仪表型谱
型 谱
|
说 明
|
DY
|
大延牌智能型仪表
|
|
|
2
|
SMT+开关电源(AC:85V～265V 50/60Hz)
|
|
|
1
|
宽×高×深：(160×80×115) mm
|
2
|
(80×160×115) mm
|
4
|
(48×48×100) mm ＊
|
6
|
(96×48×112) mm
|
7
|
(72×72×100) mm ＊
|
8
|
(48×96×112) mm
|
9
|
(96×96×112) mm
|
|
|
B
|
变送控制+位式控制
|
GB
|
变送控制+位式控制+单光柱 ＊
|
|
|
0
|
报警（O2）+报警（O3）+（4～20）mA变送输出（O4）
|
1
|
报警（O2）+报警（O3）+（1～5）V变送输出（O4）
|
2
|
上限报警（O1）+报警（O2）+报警（O3）+（4～20）mA变送输出（O4）
|
3
|
上限报警（O1）+报警（O2）+报警（O3）+（1～5）V变送输出（O4）
|
4
|
通讯（O1）+报警（O2）+报警（O3）+（4～20）mA变送输出（O4）
|
5
|
通讯（O1）+报警（O2）+报警（O3）+（1～5）V变送输出（O4）
|
9
|
用户特殊要求的输出
|
| |
0
|
输入信号类型由用户自由选择，出厂时设定在（4～20）mA输入
|
1
|
适配K、B、J、E、T、R、S热电偶
|
2
|
适配Pt100、Cu50热电阻
|
3
|
适配霍尔变送器mV
|
4
|
适配远传压力表（30～350）Ω
|
6
|
适配(4～20)mA输入，量程自由设定
|
8
|
适配(1～5)V输入，量程自由设定
|
9
|
用户特殊要求的分度号
|
|
|
|
缺省为220VAC供电
|
D
|
24VDC供电
|
|
|
|
缺省为无附加24VDC馈电电源输出
|
P
|
附加24VDC馈电电源输出
|
|
|
缺省为不带串行通讯接口
|
2
|
RS232串行通讯接口
|
4
|
RS485串行通讯接口（带隔离）
|
| |
M
|
Modbus协议
|
| |
|
|
|
|
|
|
|
|
|
|
|
＊ (48×48×100)mm (72×72×100)mm规格，订货时请向厂家咨询。
＊ 报警（
O2），报警（
O3）用户可自行组态为上限报警或下限报警。
＊ 光柱的仪表仅有两种外型尺寸：(160×80×115)mm (80×160×115)mm
＊ 特殊要求请与厂家联系
三、 DY2000智能变送控制数字/光柱显示仪表接线图
(60×80×115)mm (80×160×115)mm
(96×96×112)mm (96×48×112)mm (48×96×112)mm
(48×48×100)mm
(72×72×100)mm
